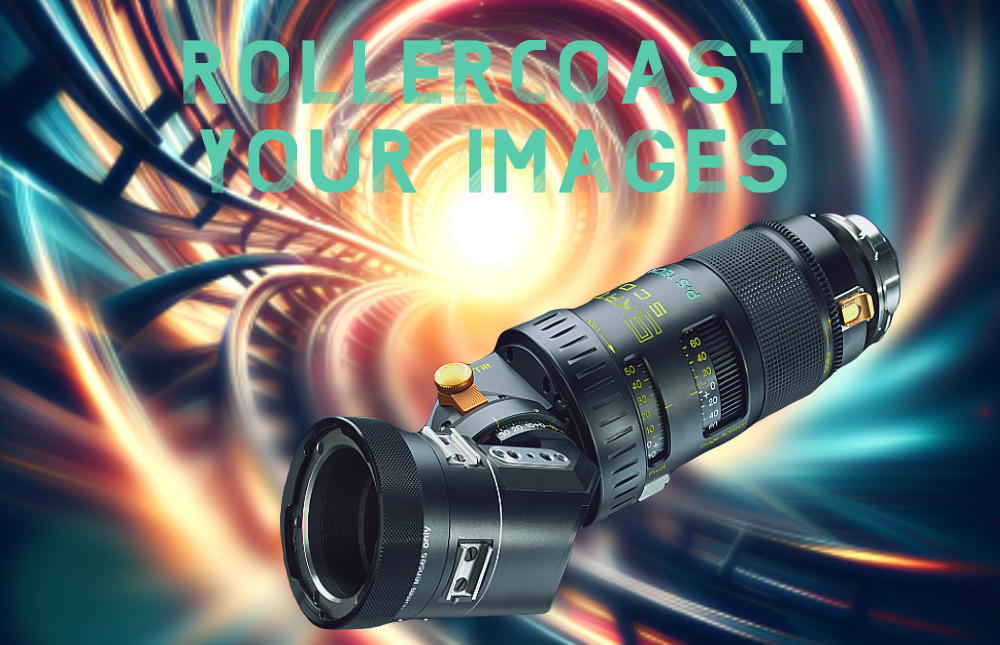

SKATER SCOPE
The SKATER Scope is the first truly compact periscope lens system. It can be used as a straight version (borescope) and as a bent version (periscope) with any desired angle.
As it is considerably shorter in its overall length than comparable systems, with clear operating controls, the SKATER Scope makes it possible to work quickly and intuitively.
SPECIFICATION
| Overall length in straight mode / PL | 335.8mm / 13'2'' |
|---|---|
| Length from PL to PL in straight mode | 311.8mm / 12'3'' |
| Distance PL to center of lens, 90° mode | 215mm / 8'5'' |
| Width | 135.4mm / 5'3'' |
| Height | 94mm / 3'7'' |
| Weight | 3,3 kg / 7.3 lbs |
| F-Stop / light loss | F4 1/3 + 2/3 = T 5.6 |
| Camera mounts | PL |
| Lens mounts | PL, F |
| Formats | covers S35, N35, S16, N16 |
| Range of tilt element | +/- 105° in 2.5° increments |
| Pivot on lens block | +/- unlimited 360° |
| Image rotation | +/- unlimited 360° |
| Flight case | +/- 50x30x19cm / 19'7''x11'8''x7'5'' |
